Reverse Profile Wire Wedge Wire Screen Filter Of Stainless Steel 304

Reverse Profile Wire Wedge Wire Screen Filter Of Stainless Steel 304

Stainless Steel Wedge Wire Screen

Reverse Profile wedge wire filter

Stainless 304 wedge wire filter

Menşe yeri:

Hengshui Şehri, Hebei Eyaleti, Çin

Marka adı:

HengYuan

Sertifika:

ISO,CO,FORM E,CIQ, etc

Model numarası:

Hy070801

Bize Ulaşın

Bir teklif isteği
Ürün Detayları
Adı:
Ters Kama Tel Filtresi
Malzeme:
Paslanmaz çelik 304
Çapraz:
225mm
Uzunluk:
125mm
yuva:
0,095 mm
Tel:
1*2mm V tel
Destek çubuğu:
2*3mm V tel
biter:
hiç bir şey
Teknik:
Nokta Kaynağı
Özellikleri:
tıkanmaz
Uygulama:
Filtreleme
Paket:
Ahşap kutu
İşletme Türü:
Üreticisi
Filtre tipi:
İçeriden Dışarıya
Ürün Açıklaması

Reverse Profile Wire Wedge Wire Screen Information:



Material : Stainless steel wire.Such as: SS304, SS201, SS316L etc.

Diameter : 100-1300 mm ,can make as customers request.

Slot: 0.02-10mm

Length :10-4000mm

End connection:male/female threaded couplings ,plain beveled welded ring ends ,flange,closed,same slot sieve plate.

Filter type:From outside to inside.  also can make other type:From inside to outside.

Wire size: 1*2mm, 1.2*2mm, 1.5*2mm, 1.5*2.5mm, 2*3mm, 2*3.5mm, 2*4mm, 3*4.6mm, 3*5mm etc.

Support rod: 2*3mm, 3*4.6mm, 3*5mm etc.





Reverse Profile Wire Wedge Wire Screen Filter type:



Flow inside to outside also known as filtration in to out (FITO) happens when the support profile is horizontal to the surface profile of the wedge wire filter.



Flow inside to outside is ideal if you want to maintain the pressure of the fluid during the filtration.



However, there will be frequent cake formation as a result of the deposit of contaminants at the sides of the wedge wire filter.



This is due to the small inner diameter which does not generate enough pressure to force the contaminants.

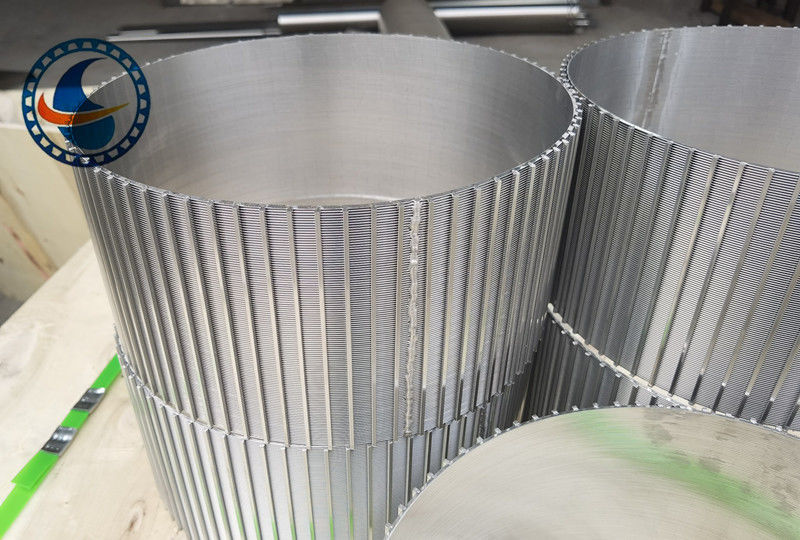

Reverse Profile Wire Wedge Wire Screen Filter Of Stainless Steel 304 0



Reverse Profile Wire Wedge Wire Screen Normal wire and support size:

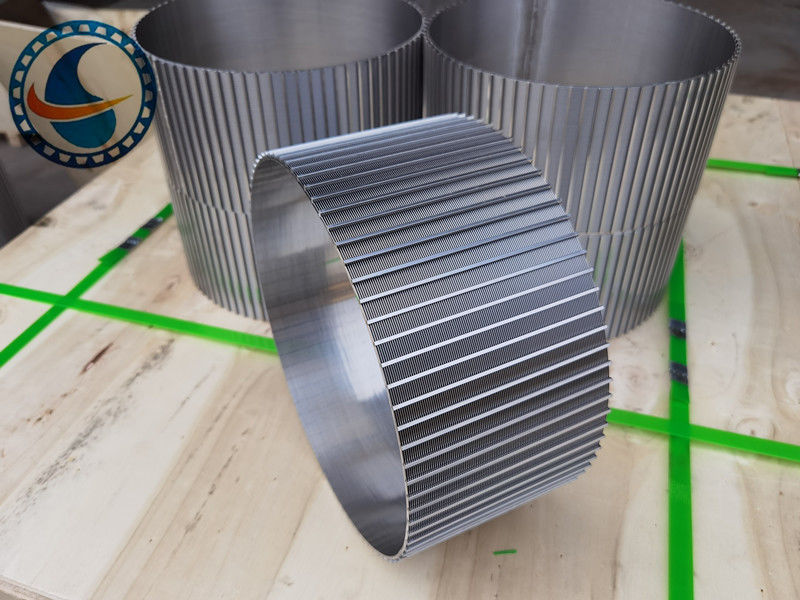

Reverse Profile Wire Wedge Wire Screen Filter Of Stainless Steel 304 1

Reverse Profile Wire Wedge Wire Screen Filter Of Stainless Steel 304 2
