Name: 219mm Stainless Steel Johnson Water Well Screen 1.0mm Slot
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: 8-5/8"
Price: 200.00 USD
Availability: InStock

Ev > Ürünler > Su Kuyusu Ekranı >

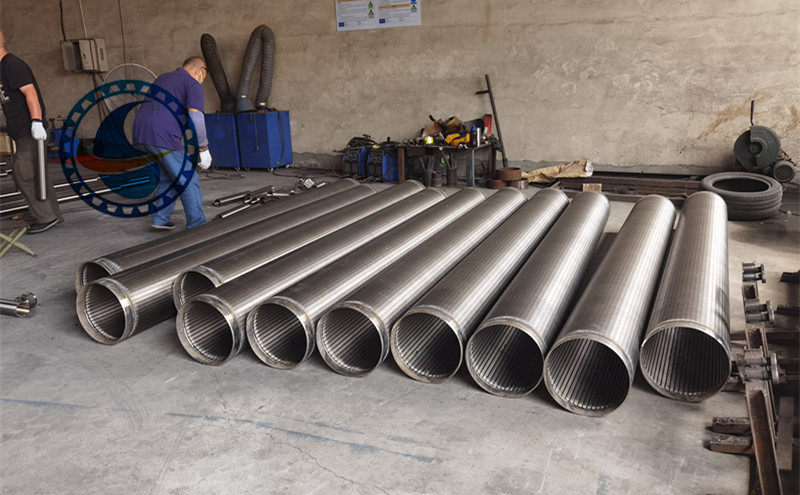

219mm Stainless Steel Johnson Water Well Screen 1.0mm Slot

219mm stainless steel well screen

1.0mm slot water well screen

Johnson water well screen

Menşe yeri:

Hengshui, Hebei, Çin

Marka adı:

Heng Yuan

Sertifika:

ISO9000

Model numarası:

8-5/8"

Bize Ulaşın

Bir teklif isteği

Ürün Detayları

Adı:

Johnson Su Kuyu Ekranları

Malzeme:

Paslanmaz çelik

Çapraz:

219 mm

Uzunluk:

5800mm

Yuva boyutu:

1,0 mm

Tel sarın:

3,0×4,6 mm

Destek çubuğu:

ø4.0mm

HAYIR. çubuk:

48NOS

Bağlantıyı Kapat:

kaynaklı halkalar

Ağırlık:

110kg/parça

Paket:

plastik film

Kullanımı:

Kum kontrolü için su kuyularında

ilgili ürünler

video

10-3/4 Inch SS304 Water Well Screen with #20 Slot

En İyi Fiyatı Alın

video

219mm Stainless Steel Johnson Water Well Screen 1.0mm Slot

En İyi Fiyatı Alın

video

Su Kuyusu Yağ Kuyusu Filtresi için Johnson Tipi Muhafaza Borusu Yara Ekranı

En İyi Fiyatı Alın

video

Paslanmaz Çelik Johnson Tel Izgara V Tel Sarılmış Filtre Elemanı

En İyi Fiyatı Alın

Bize Ulaşın

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

Şimdi İletişime Geçin

Ürün Açıklaması

8-5/8" 1.0mm Slot Johnson Water Well Screens For Water Well Drilling

Product Specifications

Attribute	Value
Name	Johnson Water well screens
Material	Stainless steel
Diameter	219mm
Length	5800mm
Slot size	1.0 mm
Wrap wire	3.0×4.6mm
Support rod	ø4.0mm
NO. of rod	48NOS
End connection	Welded rings
Weight	110KG/piece
Package	Plastic film
Use	In water wells for sand control

Product Description

Every Johnson water well drilling project is different and requires specific well-completion tools to ensure maximum production efficiency while controlling costs. Our premium water well screens are designed for optimal sand control and fluid flow in demanding well environments.

Premium Sand Control Solutions

As a leading manufacturer of well-completion equipment, we produce a comprehensive range of sand control screens and accessories including:

Direct wrap screens and wire wrapped screens
Water well screens and repack screens
Specialized components including mule shoes, wire line entry guides, and flow couplings

Technical Advantages

Our patented sand screen technology utilizes Direct Wrap and swaging principles to eliminate gaps between layers, delivering superior mechanical properties while providing high flow rates and optimal open area for exceptional sand control performance.

Standard Specifications

Sizes (inch)	OD (mm)	Slot (mm)	Length (m)	Tensile Strength	Collapse Strength	Wrap wire Vee-shaped wire (mm)	Support rod Round wire (mm)
3-1/2	88.9	1.0	2.9	＞22	10.2	2.03.5(Widthheight)	ø3.8MM×22
4-1/2	114.3	1.0	2.9	＞28	11.5	2.03.5(Widthheight)	ø3.8MM×22
6-5/8	168.3	0.75	5.8	＞40	12.8	2.03.5(Widthheight)	ø3.8MM×32
6-5/8	168.3	1.0	5.8	＞33	12.8	2.23.5(Widthheight)	ø3.8MM×32
6-5/8	168.3	0.63	5.8	＞83	45	3.06.0(Widthheight)	ø6.0MM×32
8-5/8	219.1	1.0	5.8	＞34	21.9	2.23.5(Widthheight)	ø3.8MM×48
8-5/8	219.1	1.0	5.8	＞50	38.2	3.04.6(Widthheight)	ø4.0MM×48
8-5/8	219.1	1.0	5.8	＞60	46	3.06.0(Widthheight)	ø5.0MM×48

Special specifications can be manufactured according to your requirements.

Technical Support Services

Sand analysis of formation materials
Screen size recommendations
Screen installation guidance
Well construction consultation

Our technical team includes expert design engineers, welders, and support personnel with extensive experience in manufacturing and deploying downhole screens for diverse applications.
