Name: Low Carbon Wedge Wire Arc Screen Filter for Waste Water Treatment
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: Hy0727002
Price: 185.00 USD
Availability: InStock

Ev > Ürünler > Parabolik Ekran Filtresi >

Low Carbon Wedge Wire Arc Screen Filter for Waste Water Treatment

low carbon wedge wire filter

arc screen filter wastewater

parabolic wedge wire screen

Menşe yeri:

Anping, Hengshui, Çin

Marka adı:

Hengyuan

Sertifika:

ISO, CIQ, CE, SGS

Model numarası:

Hy0727002

Bize Ulaşın

Bir teklif isteği

Ürün Detayları

Adı:

Wedge Wire Arc Ekran Filtre

Malzeme:

Düşük karbonlu

Boyut:

4000*4000mm'ye kadar

yuva:

0.25-100mm

Wege teli:

2*3.5, 3*4.6, 3*5mm

Destek çubuğu:

3*4.6mm V tel

ilgili ürünler

video

Low Carbon Wedge Wire Arc Screen Filter for Waste Water Treatment

En İyi Fiyatı Alın

Filtrasyon Endüstrisi Uzun Hizmet Ömrü için 30 Yuvalı Parabolik Ekran Filtresi

En İyi Fiyatı Alın

Su Akışı Sıvı Filtresi için Kavisli Paslanmaz Kama Tel Panel Filtresi

En İyi Fiyatı Alın

316L Sınıf Parabolik Filtre, Madencilik Makineleri / Bira Makinesi İçin Parabolik Elek

En İyi Fiyatı Alın

Bize Ulaşın

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

Şimdi İletişime Geçin

Ürün Açıklaması

Low Carbon Waste Water Treatment Wedge Wire Arc Screen Filter

Product Specifications

Attribute	Value
Name	Wedge Wire Arc Screen Filter
Material	Low carbon steel
Size	Up to 4000 × 4000mm (customizable)
Slot	0.25-100mm (250 micron to 100mm)
Wedge Wire	2×3.5, 3×4.6, 3×5mm (multiple options available)
Support Rod	Various sizes including 2×3, 3×4.6, 3×5, 3×6, 2×10, 3×10mm
Angle	90°, 120°, 140°, 150°, 160° (customizable)
Arc Height	10mm, 15mm, 20mm, 50mm or customized
Frame	No frame, "L" type frame, ordinary frame, 5×10mm frame (customizable)

Product Description

The Low Carbon Wedge Wire Arc Screen Filter is a high-performance filtration solution designed for industrial wastewater treatment applications. This durable screen features a parabolic design with customizable slot sizes ranging from 250 micron to 100mm, making it suitable for various filtration requirements.

Key Features

Constructed from low carbon steel for durability and corrosion resistance
Customizable dimensions up to 4000mm × 4000mm
Available in multiple wedge wire profiles (2×3.5, 3×4.6, 3×5mm)
Adjustable slot sizes from 0.25mm to 100mm
Multiple angle options (90° to 160°)
Various frame configurations available
Made-to-order designs based on customer specifications

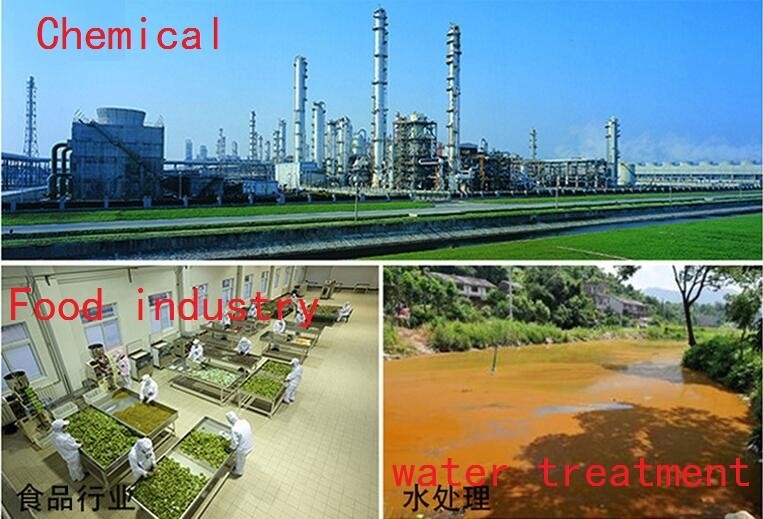

Applications

The Wedge Wire Arc Screen is ideal for use in:

Industrial water treatment equipment
Mineral processing systems
Coal-cleaning plants
Environmental protection and filtration systems
Wastewater treatment facilities

Customization Options

We offer complete customization of our Wedge Wire Arc Screens to meet your specific requirements. Our engineering team can manufacture screens according to your technical drawings, with options for:

Custom dimensions and shapes
Special slot sizes and patterns
Various wedge wire profiles
Multiple support rod configurations
Different frame types and materials
